Westinghouse – Water tank removal and replacing water filter instruction Video

Issue

Water tank removal and cleaning

Applies to

• Quad Door Refrigerator

Solution

Remove and clean the ice bin and water tank once a month, discarding unused ice and water.

This will ensure fresh ice and smooth operation of your icemaker.

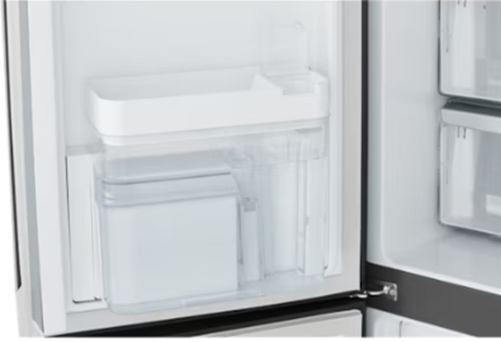

Water Tank removal

CAUTION BEFORE REMOVE: Empty the water in the tank.

To remove the water tank and disassembly cleanable parts follow these steps:

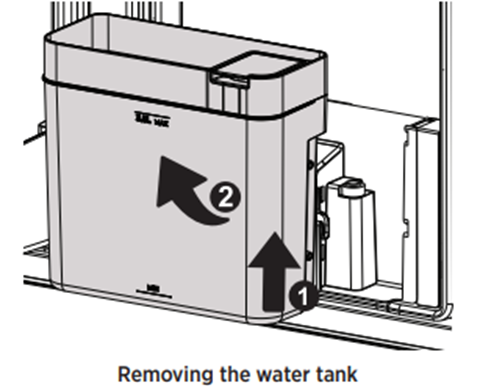

1. Life up water tank until locking release.

2. Pull water tank forward

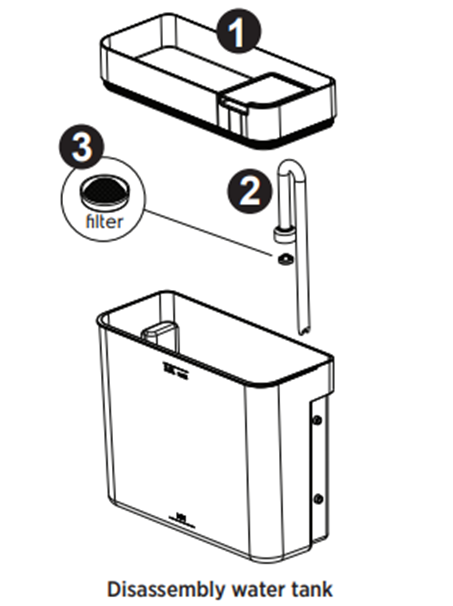

3. Remove water tank lid (1) water tank tube (2) and filter (3)

4. Reverse the step to assembly the water tank and return to its place.

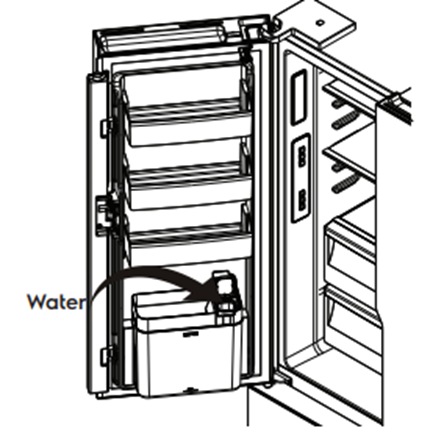

Refilling the water tank

• The water tank must be placed on the door.

• Pour potable water through the funnel at the lid of the water tank.

Caution:

Do not fill the Water tank with anything other than clean water (Filtered or Mineral water).

Soft drink, juice, tea or hot water etc, can damage your automatic icemaker.

The Water tank can withstand a maximum water temperature of 60°C

Changing the water Filter
