Westinghouse - Moving the twist & serve dispenser to the other side of top mount freezer.

Issue

Mounting the twist & serve dispenser to the other side of the freezer

NOTE: this is only possible on Top mount models.

Applies to

• Top Mount

Solution

1 - Remove the ice bin and ice cube tray. If the ice tray assembly is frozen too the carriage, simply squeeze the tray and shelf together to break the ice.

2 - Before you remove the ice carriage, remember to disengage it from the glass shelf as it may result in damage to the assembly.

3 - Remove the centre runner by disengaging it at the front of the shelf and removing it from the rear.

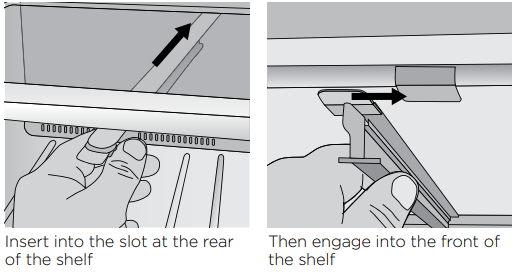

4 - Refit the runner into the rear of the shelf on the right-hand side and then engage the front. Insert into the slot at the rear of the shelf Then engage into the front of the shelf.

5- Fit the carriage by sliding it into the runners until the front if the carriage engages with the shelf.

6 - Refit the ice tray and ice bin.
