Westinghouse - Ice & Water plumbed external user interface Sleep Mode turn on/off

Issue

External user interface Sleep Mode, how to turn on/off

Applies to

• Quad Door Refrigerator
• French Door Refrigerator

Solution

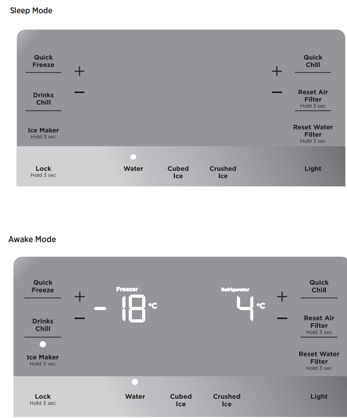

Sleep Mode – On

As a default, the display will go to sleep after a short time. If any icon is pressed, the display will be awakened. After a short time, it will go back to sleep.

When in sleep mode, wake up the display to confirm ice maker is On/Off.

Note: When the refrigerator is adjusting temperature and the adjusting temperature icon is on, the sleep mode is disabled until the unit reaches desired temperature.

Sleep mode - Off

Sleep mode can be turned off to have the display on full time (awake mode).

When sleep mode is Off, the display will always be illuminated. To turn sleep mode On or Off, simultaneously press and hold “Crush” and “Light” icons for 5 seconds.

Audible tone will confirm selection is set.
