Westinghouse- FlexSpace Convertible Compartment Settings and Shelf Configuration options

Issue

FlexSpace Convertible Compartment Settings and Shelf Configuration options

Applies to

• Quad Door Refrigerator

Solution

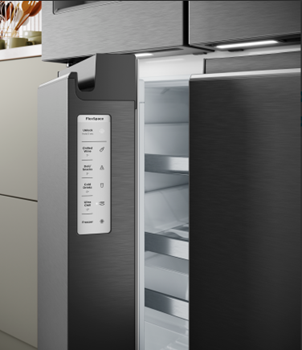

Our FlexSpace convertible compartment can go from fridge to freezer at the touch of a button.

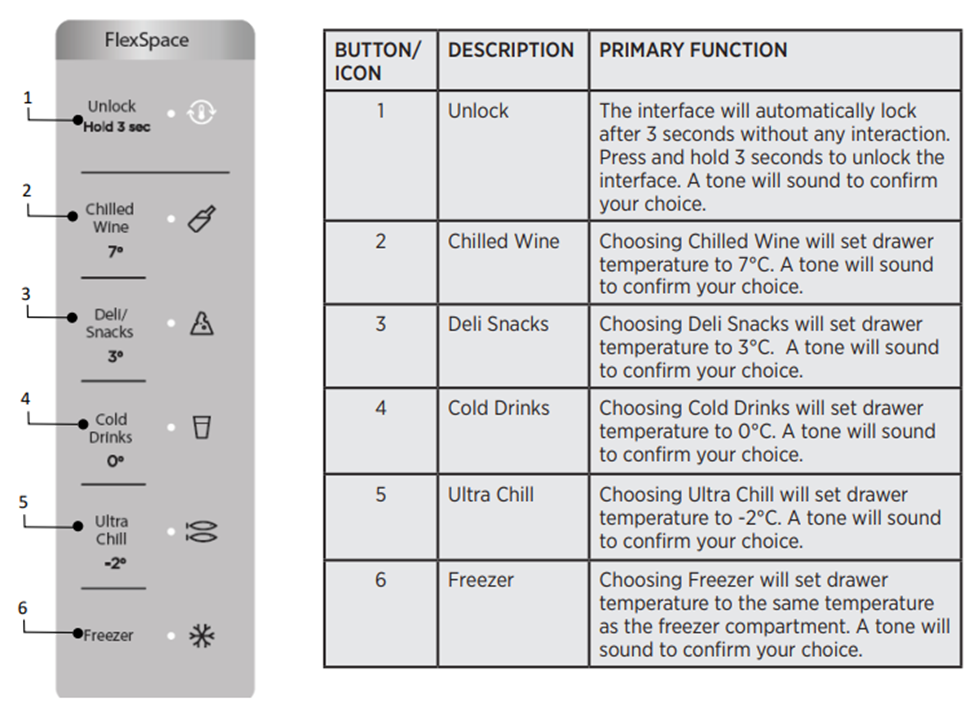

With 5 different temperature settings

• Frozen foods -23C
• Chilled protein -2C
• Chilled drinks 0C
• Deli snacks 3C
• Chilled wine 7C

All freezer and FlexSpace shelves and drawers are removable.

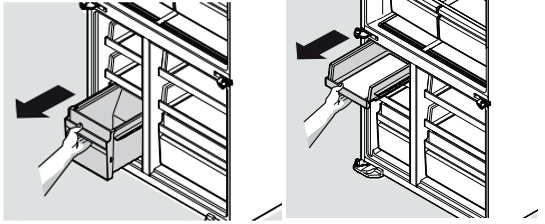

1. Open doors completely to gain access to shelves/drawers.

2. Pull the shelf/drawer to the stopper. Lift up and pull to remove it from the cabinet.

3. Reverse the steps to reinstall shelf/drawer.

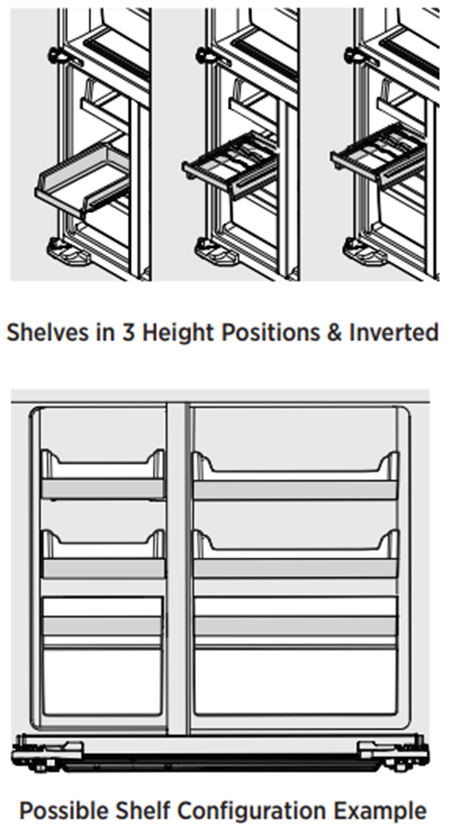

The middle drawers in the freezer and FlexSpace™ can be mounted up to three height positions and can also invert 90 degrees allowing storage of bottles in the FlexSpace™

NOTE: There are wheels on the back of all shelves. Make sure all wheels are aligned on their respective tracks for proper function. If shelf is not aligned properly, it will cause problems with the door operation.
