Ice cubes too big/small or joined together

Issue

Ice Cubes are too big

Ice Cubes are too small

Ice cubes are joined together

Applies to

• WSE6670BA
• WSE6670SA

Solution

The fridge water supply for the ice maker is factory set to 5 seconds, if the cubes are too big or too small it is likely due to the water pressure being outside the recommended. The water fill time can be adjusted.

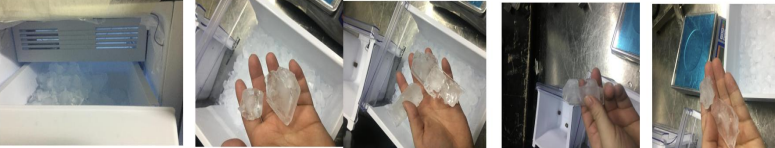

Good size ice cubes

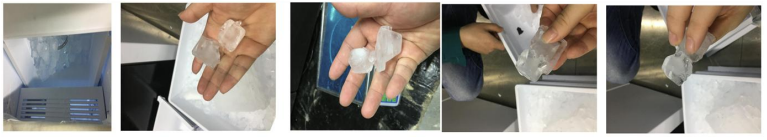

Ice cubes clumping or joined together

Water fill time adjustment

Press the ‘crushed ice’ button for 5 seconds - to enter adjustment mode

Press the ‘crushed ice’ button to adjust to correct level.

Time adjustment range is 0-10 seconds (displayed value is 00-99)

• If the ice cube is too small, increase the time
• If the ice cubes are joined together or too big, decrease the time
