How to remove/replace the auto humidity control drawer with membrane

Issue

How to remove the auto humidity control drawer

Removal and cleaning of the filter membrane

How to clean and maintain the crisper drawer

Applies to

• Refrigeration French Door
• Refrigeration Quad Door

Solution

FreshSealTM Crisper (with automatic humidity control) Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Crispers have an auto humidity control (with replaceable membrane) on the side of each crisper under the humidity control cover or on the back of each crisper under the humidity control cover.

To remove the FreshSealTM Crisper for cleaning:

1. Pull the drawer out until it stops.

2. Lift the front slightly and remove the drawer.

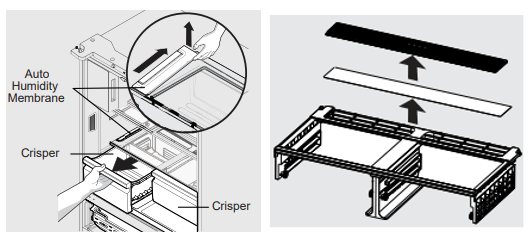

To remove the auto humidity control membrane:

1. Reach to back of humidity control cover.

2. Pull up on cover.

3. Pull cover towards back of cabinet and remove.

4. Replace humidity membrane.

5. Replace cover by reversing the steps above.

Replacement membrane and accessories can be ordered from the Electrolux webshop
