How to change settings of the Multiswitch Drawer

Issue

How to change settings of the Multiswitch Drawer

Applies to

• French Door Fridge
• EHE6191BB

Solution

MultiSwitch fully convertible drawer

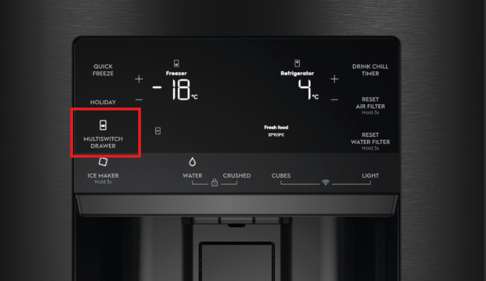

Use the ‘Multiswitch’ button set or change the settings of the Multiswitch drawer compartment.

Freezer

When in the Freezer setting, change the drawer temperature using the control panel on the front door. Changing the temperature on the display adjusts both the drawer and freezer compartment temperatures.

Meat/Fish - Use this setting for short-term storage of meat and fish.

Press Meat/ fish to set the drawer temperature to 28°F (-2°C). A tone sounds to confirm the choice.

Drinks - Use this setting for cooling drinks.

Press Drinks to set the drawer to 32°F (0°C). A tone sounds to confirm the choice.

Fresh food - Use this setting for storing foods or snacks.

Press Fresh food to set the drawer to 37°F (3°C). A tone sounds to confirm the choice.

Wine - Use this setting for wine storage.

Press Wine to set the drawer to 45°F (7°C). A tone sounds to confirm the choice.
