Westinghouse Air Conditioner | How to set up the Timer
Issue
How to set up the Timer
Applies to
- Westinghouse Split System Air Conditioner
Solution

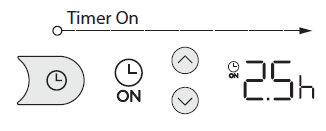

Example of Timer 'on' setting
1. Press the Timer button. The Timer on symbol and time will show on the display.
2. Press the up or down button to set desired Timer on time to turn on the unit after
2.5 hours.
3. Point the remote controller to indoor unit and wait 1 second, then the Timer
on function will be activated. The digital display on your remote controller will
then return to the temperature display. The Timer on indicator remains on and
this function is activated.

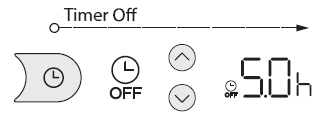

Example of Timer off setting
1. Press the Timer button till the Timer off symbol and time show on the display.
2. Press the or button to set desired Timer off time to turn off the unit after 5
hours.
3. Point the remote controller to indoor unit and wait 1 second, then the Timer
off function will be activated. The digital display on your remote controller will
then return to the temperature display. The Timer off indicator remains on and
this function is activated.
Note:
- When setting the Timer on or Timer off functions, up to 10 hours, the time will increase in 30 minute increments with each press. After 10 hours and up to 24, it will increase in 1 hour increments. The timer will revert to zero after 24 hours.
- You can cancel either function by setting its timer to “0.0h”.

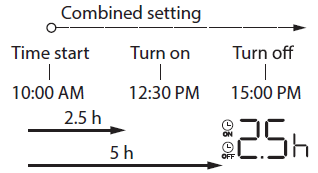

Example of Combined Timer setting
It is 10:00 AM and you want to start the air conditioner after 2.5 hours and stop it after 5 hours.
1. Follow the Timer on setting to set the turn on time to 2.5 hours.
2. Continue press the Timer button to set the turn off time to 5 hours.
3. Both the Timer on and Timer off indicators display on the remote controller, the combined Timer setting is activated.
4. Then the unit will turn on at 12:30 PM and turn off at 15:00 PM.
