Heat Pump Dryer SteamCare – How to fill water tank and use steam program selections (Electrolux)

Issue

Heat Pump Dryer SteamCare – How to fill water tank and use steam program selections

Applies to

• Heat Pump Tumble Dryer

Solution

SteamCare reduces wrinkles by 50%* after drying and refreshes clothes for easy ironing

With the unique technology of our SteamCare dryer, reduce wrinkles in freshly dried clothes by up to 50%* for easy ironing.

Or simply refresh stale clothes, quickly removing odours from food or smoke and returning a feeling of freshness to your garments.

Heat pump technology efficiently keeps your clothes lasting longer by drying at much lower temperatures than conventional dryers. It cares for your delicate garments while using up to 60% less energy.

SteamCare will use water collected from the previous drying process, alternatively, if SteamCare is your first cycle, you can fill the water tank manually.

Note: The steam icon alerts you when the steam tank is empty. In this case steam functions cannot be activated

Caution: Use only distilled or demineralized water

The condensed water collected in the water tank is also applicable for steam system. The condensate water must be filtered e.g. with a coffee filter to remove small pieces

To fill water container

1. Turn on the appliance.

2. Set 1 of the programs with steam option to check the water level.

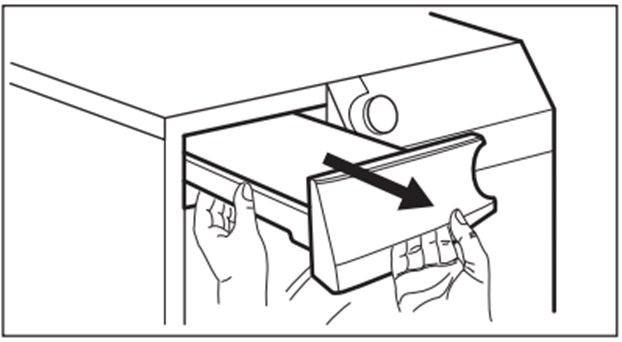

3. Pull the water container. Keep it in horizontal position.

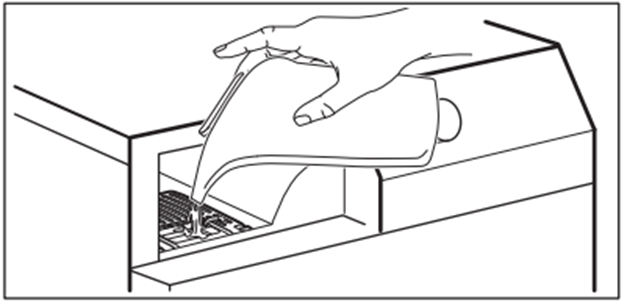

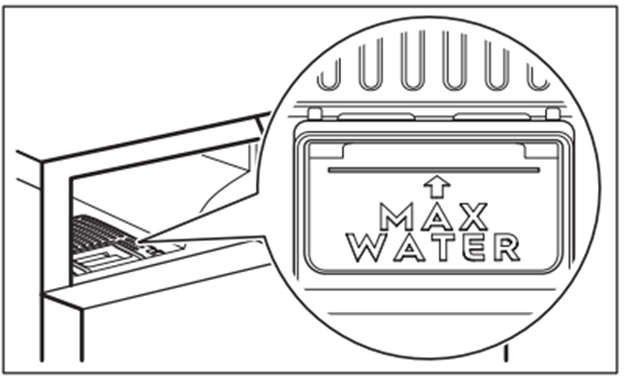

4. Fill the water until it reaches the "max" level.

5. Insert the water container

This ‘Steam option' is to set the required steam load.

It depends on the: type, weight and volume of the laundry.

There are 3 possible selections

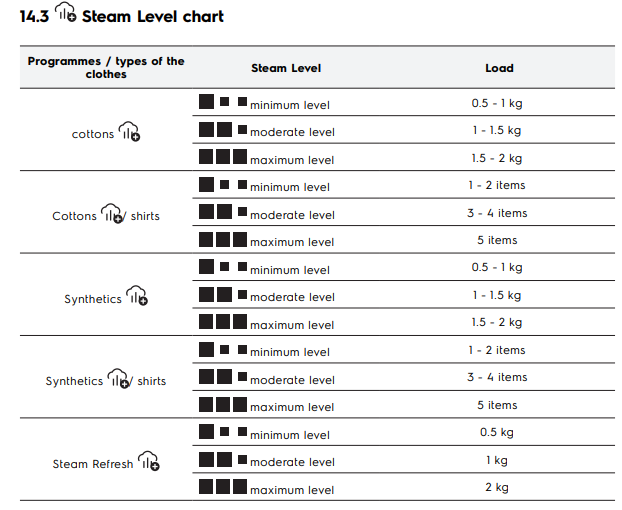

Steam Level Chart
