Air Conditioner – Window Wall Cleaning and Maintenance

Issue

Air Conditioner – Window Wall Cleaning and Maintenance Instructions

Applies to

• Air Conditioner - Window Wall

Solution

Cleaning and maintenance

When cleaning the unit, first make sure that the power and circuit breaker are turned off.

Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges.

Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.

NEVER operate the air conditioner without the air filter, as dust/dirt particles can contribute to equipment failure

Air Filter

The air filter behind the inlet grille should be checked and cleaned at least once every 2 weeks (or as necessary) to maintain optimal performance of the air conditioner.

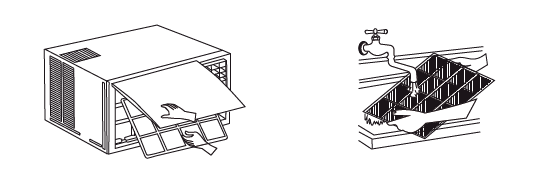

1. The grille can be opened from the bottom for easy maintenance after installation.

2. Open the inlet grille by pulling on the openings in the bottom of the grille

3. Pull the tab slightly to release the air filter. Pull the filter forward to remove it.

4. Clean the air filter with warm soapy water. The water should be below 40°C to prevent damage.

5. Rinse off and gently shake off any excess water from the filter, allow filter to dry before replacing it. To prevent damage, do not dry in direct sunlight.
