How to set or adjust the clock - Electrolux oven

Issue

How to Set the or adjust clock on Electrolux oven

Applies to

• Built-In Oven

Solution

The time of day must be set before the appliance can operate.

How to set the clock

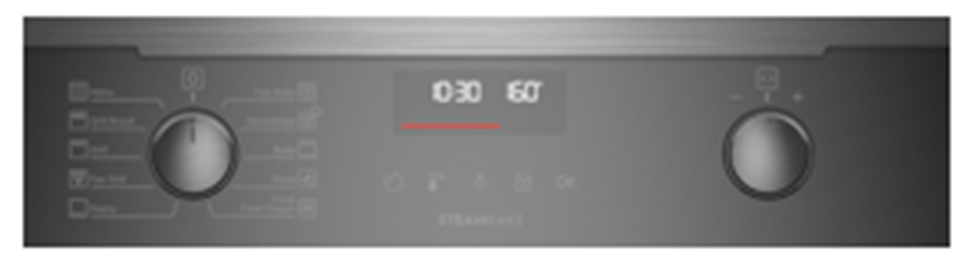

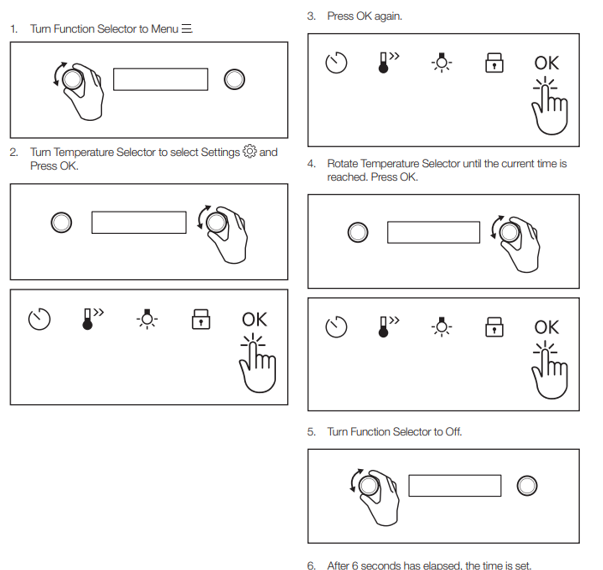

1. Press: Menu

2. Select: Settings – Set up

3. Select: Time of day and set time, and press > and press OK

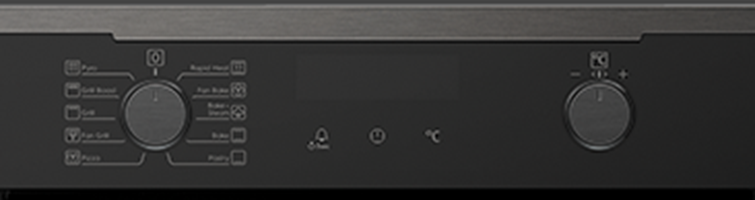

1. Touch and hold the Clock button until the clock symbol begins to flash.

The hour display will be ready to change.

2. Toggle the temp selector + or – then touch when you have the right hour.

3. The minutes will flash and can be set in the same manner.

5 seconds after the last change, the clock display will stop flashing, confirming that the time has been set.

NOTE: The clock has a 24 hour display.

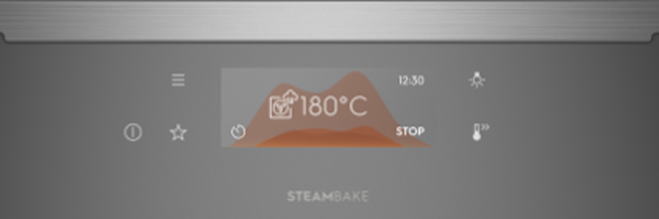

Set the time of Day

Setting the time The time of day must be set before the appliance can operate.

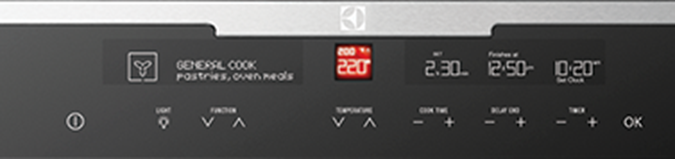

After the appliance has been electrically connected the display will cycle through the welcome screen, then ‘Set Clock’ will illuminate under the clock display and the Hour digits will flash.

1. Use the ‘timer’ + and – to set the hour portion of the current time (including AM/PM).

2. Press OK when the hours are set correctly.

The Minute digits will flash.

3. Use the timer + and – to set the minutes portion of the current time.

4. Press OK when the minutes are set correctly.

You can turn the oven off or it will do so after 8 seconds. Once the time has been entered, the clock advances minute by minute.

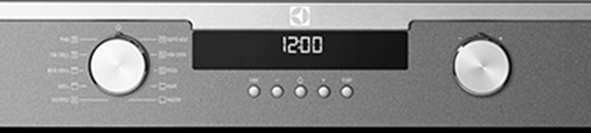

1. Activate the appliance.

2. Press up or down arrow symbol to select the menu option.

3. Press OK to move to the submenu or accept the setting.

4. Select Basic Settings

5. Select time of day

6. Set time using up or down arrow symbol

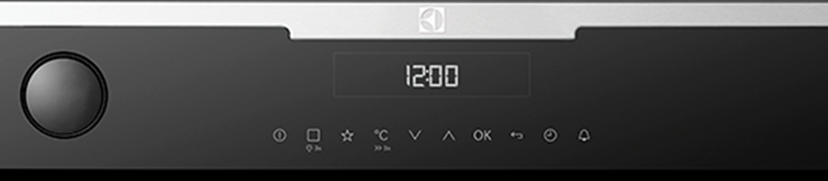

1. Press and hold the ‘TIME’ button and ‘clock symbol’ until the clock begins to flash.

The hour display will be ready to change.

2. Press + or – then press ‘TIME’ when you have the right hour.

3. The minutes will flash and can be set in the same manner.

The clock display will stop flashing 5 seconds after the last change, confirming that the time has been set.

Note: The clock has a 24 hour display.
